Prolong the lifetime of rotors in the environment of highpower and high torque with the Dualsky EA series brushless outrunner motors, with improved running efficiency in the middle RPM range. These high quality yet low priced motors are suitable for all aircraft pilots.

features:
- Improved front cover, better heat dissipation
- Rotor with more beautiful star design
- Increase the intensity of rotor and shell, reduce vibration and bear more load
- Switch to curved magnets with higher grade
- Use high efficiency silicon steel
- Reduce the air gap of the stator and rotor, increase efficiency
- Use thicker enameled wire which is resistant to high temperature, improve insulation and impact resistance
- Compared with CA, EA power is increased by 10-20% and efficiency increased by 3-5%
- More options for KV value, suitable for practical use
- Add XM2838EA XM4255EA to EA series, which CA series have not
- Motor mounting holes and shaft diameter compatible with CA series
- Accessories compatible with the CA series(except new added models)
- 8mm propeller mount with thinner threads, propeller not easy to loose

Motor Specs
Type Brushless Outrunner
RPM / Volt 480Kv
Maximum Power 1242W
Cells 5s - 6s LiPo
Resistance 0.025ohm
Burst Current 56A
ESC 60A

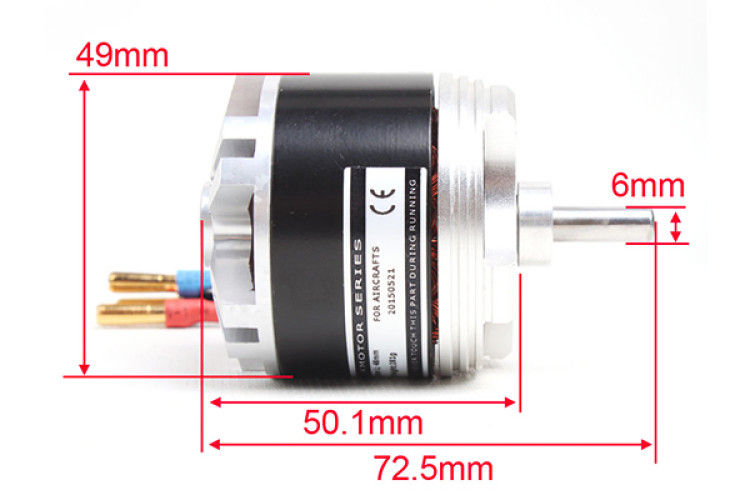

Shaft Diameter (A) 6mm
Recommended Propeller 5S 15x8 / 6S 14x7
Net Weight 281g

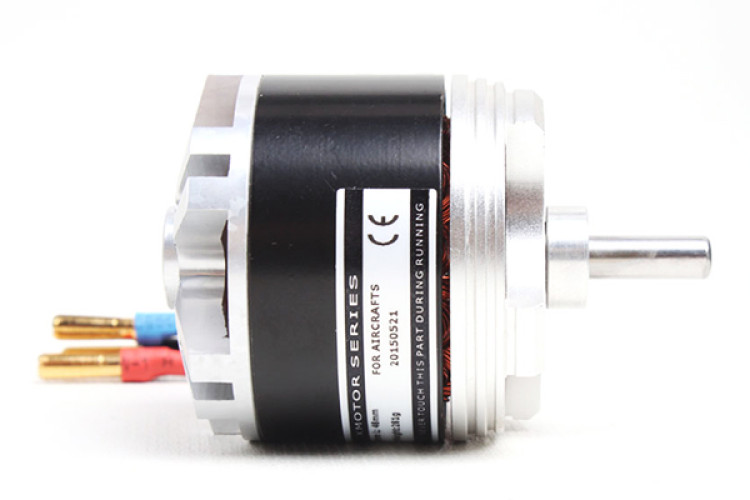

Dualsky Xmotor 5050EA 480KV

  • Brand: Dualsky
  • Product Code: XM5050-B
  • Availability: In Stock
  • $179.00
